Choosing the right slitter rewinder machine involves many critical decisions, and one of the most common questions I get is about the unwinding system. Are you wrestling with whether to specify a machine with manual or automatic loading? You might feel caught between the high initial cost of automation and the potential long-term pains of manual labor and slower changeovers. The debate over manual loading vs automatic loading is a crucial one, as the wrong choice can impact your factory’s safety, efficiency, and bottom line for years.
The choice between manual and automatic loading depends on your operational context. Automatic loading is best for high-volume production with heavy parent rolls (over 800 kg[1]), where it boosts safety, reduces labor dependency, and ensures consistent quality. Manual loading is a practical, lower-cost solution for smaller operations with lightweight rolls, varied job types, and a focus on minimizing initial capital investment.
This decision is far more than just a feature comparison; it’s a strategic analysis of your factory’s unique needs. To make the right call, you need to look beyond the price tag and evaluate the total cost of ownership. Let’s break down the key factors to help you determine which system is the best fit for your production line.

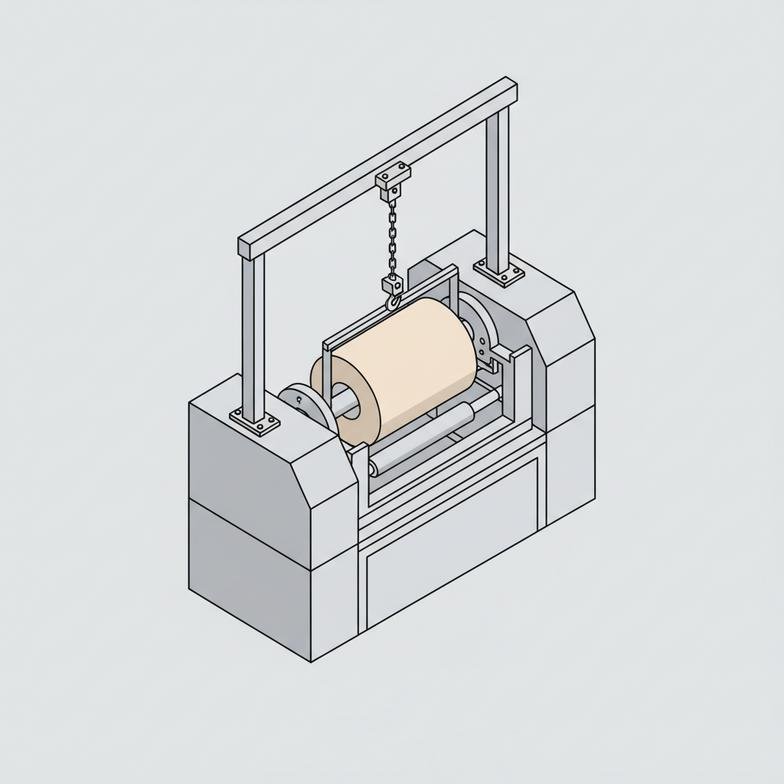

When Does Manual Loading Make More Sense?
Are you setting up a new line or working with a tight capital budget? The upfront cost of a fully automated system can feel daunting, leading you to wonder if a manual loading option is a compromise that will hurt you later. The truth is, for many applications, manual loading is not just a budget choice—it’s the right strategic choice.
A manual loading system is the ideal solution for operations focused on lower initial capital expenditure, high-mix/low-volume production, and materials that are lightweight and easy to handle. It offers flexibility and simplicity where full automation isn’t yet justified.
Dive Deeper: The Case for Manual Loading
At JHSlitter, we often consult with business owners who are starting out or expanding into new markets. The conversation frequently turns to managing initial investment, and this is where manual loading systems shine.
The CAPEX Advantage: Lower Initial Investment
The most obvious benefit of a manual loading system is its lower price. Automatic systems involve complex components: hydraulic or pneumatic arms, sensors, floor pickup mechanisms, and integrated control logic. These all add significant cost to the machine. For a startup or a company testing a new product line, minimizing this initial capital expenditure (CAPEX) is often the top priority. A manual or semi-manual system allows you to get a high-quality slitter rewinder for its core job—slitting and rewinding—without the added expense of full automation. You can allocate that saved capital to other critical areas like raw materials or downstream packaging equipment.
Flexibility for High-Mix, Low-Volume Production
Think about a converting job shop. One day you might be slitting a narrow roll of label stock, and the next you’re working with a specialty film of a completely different width and weight. In this high-mix, low-volume environment, the speed of a fully automated changeover isn’t always the biggest bottleneck. A manual system, often assisted by a simple crane or hoist, gives operators direct control. They can quickly adapt to different core sizes and roll widths without reprogramming a complex system. For rolls under a certain weight, say 300-500 kg, an experienced operator can load a new roll quite efficiently.
The Hidden Costs and Considerations of Manual Loading
However, it’s crucial to be honest about the trade-offs. While CAPEX is lower, operational expenditure (OPEX) can be higher. Manual loading is labor-intensive. It requires physically capable operators and introduces risks of human error. Here are the key points to consider:
- Operator Safety: Manually handling even moderately heavy rolls (above 50 kg) introduces risks of back strain and other injuries.[2] This is the single biggest drawback and requires strict safety protocols and lifting aids.
- Alignment Issues: A slight misalignment when loading the parent roll can lead to web wander, uneven edges, and telescoping in the finished rolls[3]. This increases material waste and can be a source of constant frustration.
- Longer Changeover Times: While flexible, manual loading is almost always slower than an optimized automatic cycle. This downtime between rolls directly impacts your overall equipment effectiveness (OEE)[4].
Here’s a simple table to summarize the trade-offs:
| Feature | Manual Loading | Automatic Loading |
|---|---|---|
| Initial Cost (CAPEX) | Lower | Higher |
| Operational Cost (OPEX) | Higher (Labor, potential waste) | Lower (Reduced labor, waste) |
| Ideal Roll Weight | Under 800 kg (with assistance) | 800 kg to 3000+ kg |
| Changeover Speed | Slower, variable | Faster, consistent |
| Operator Safety Risk | Higher | Significantly Lower |
| Best Use Case | Small batches, varied materials, low volume | High volume, standardized rolls, heavy materials |

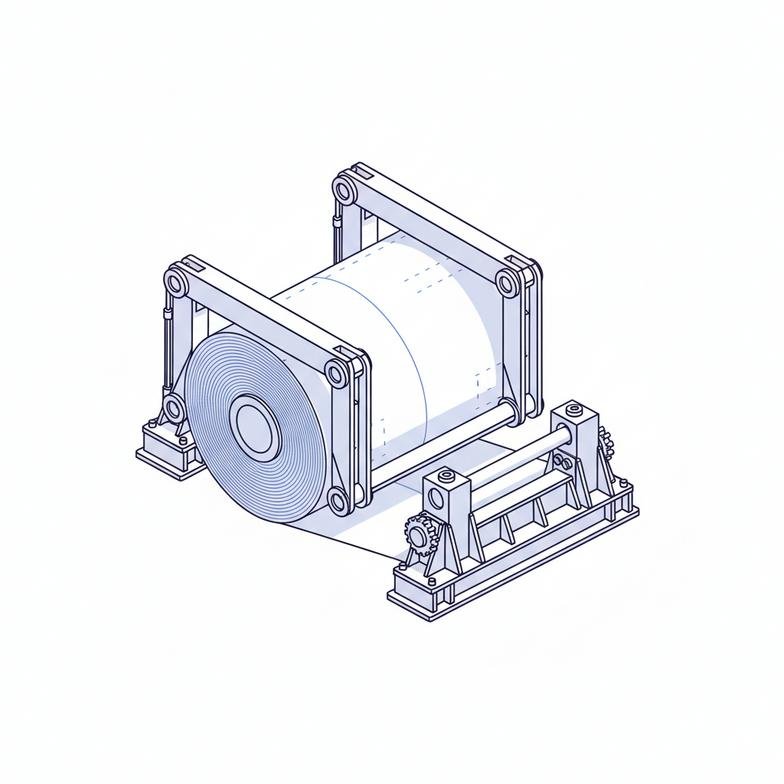

Why Should You Invest in an Automatic Loading System?
Is your production demand growing, but you’re struggling to keep up due to downtime between jobs? Are you concerned about operator safety with increasingly heavy parent rolls? If these questions resonate with you, it’s time to seriously consider investing in an automatic loading system.
An automatic loading system is a powerful strategic investment for factories running high-volume, standardized production. It’s the best choice for handling heavy parent rolls, maximizing operator safety, minimizing material waste, and achieving the highest possible throughput from your slitter rewinder machine.
Dive Deeper: The ROI of Automatic Loading
When I visit established converting plants, the focus shifts from initial cost to long-term efficiency and risk mitigation. This is where the conversation about manual loading vs automatic loading becomes a clear discussion about return on investment (ROI).
The Safety Imperative with Heavy Rolls
This is non-negotiable. For many of our customers in the paper, paperboard, and non-woven sectors, parent rolls can easily exceed 1000 kg, 2000 kg, or even more. At this scale, manual loading is not an option—it’s a massive liability. An automatic loading system, typically a shaftless hydraulic floor pickup type, takes the operator out of harm’s way. The system safely lifts the roll from the floor, positions it perfectly, and secures it in the unwind stand. This eliminates the risk of crushing injuries, strains, and other accidents associated with moving heavy loads. In many regions, workplace safety regulations make this a mandatory choice for heavy materials[5].
Unlocking Production Consistency and Speed
An automatic system does the same thing, perfectly, every single time. This repeatability is key to quality control.
- Perfect Alignment: The system’s sensors and mechanical guides ensure the roll is loaded onto the machine’s centerline with sub-millimeter precision[6]. This eliminates the web wander and edge trim waste caused by manual misalignment.
- Reduced Changeover Cycles: While an operator is preparing the next roll, the machine can automatically eject the empty core, pick up the new roll, and be ready for threading. This predictable, fast cycle cuts downtime between rolls from, say, 15-20 minutes down to just 2-3 minutes[7]. Over a three-shift operation, this saved time adds up to hours of extra production capacity.
- Reduced Labor Dependency: Finding and retaining skilled operators is a global challenge. An automatic system reduces the physical strain and skill required for the loading process, making the job safer and more accessible. One operator can often manage a machine that would have required two people just for loading.
Calculating the ROI: It’s More Than Just Labor Savings
When justifying the higher CAPEX for an automatic system, look beyond just the labor cost savings. The true ROI comes from a combination of factors: 1. Increased Throughput: Less downtime means more finished rolls per shift. 2. Reduced Material Waste: Consistent alignment means less trim and fewer scrapped rolls due to telescoping or bad edges. I’ve seen customers reduce their startup waste by over 70%[8] after switching to an automated system. 3. Improved Safety: The cost of one serious workplace accident—in terms of medical bills, lost production, and potential fines—can easily exceed the cost of the automation itself.[9] 4. Enabling Higher Speeds: You can’t run a slitter at 500 m/min if your loading process is slow and inconsistent. Automation unlocks the full speed potential of your machine.
How Does Material Type Influence the Manual Loading vs Automatic Loading Choice?
You might think the loading decision is all about the machine, but in my experience, the material you run is the real boss. The properties of your parent roll—its weight, width, and even its delicacy—heavily dictate whether manual or automatic loading is feasible, safe, or efficient.
The characteristics of your material are the most critical factor in the manual loading vs automatic loading debate. Heavy and wide materials like paperboard and metal foils necessitate automatic loading for safety and handling. Lighter, narrower materials like some label stocks may not justify the added cost of automation.
Dive Deeper: Letting the Material Guide Your Decision
When a customer comes to us with a new project, the first questions we ask are about the material specifications. Before we even talk about machine models, we need to understand what we’re handling.
The Weight Factor: Paperboard and Metal Foils
This is the most straightforward factor. If you’re processing materials with high density, the choice is made for you.
- Paper and Paperboard: A standard 1.6-meter wide roll of paperboard can easily weigh over 1500 kg.[10]
- Aluminum and Copper Foil: Metal foils are extremely dense. Even a relatively narrow roll can be deceptively heavy, often exceeding 1000 kg.
Trying to handle these weights manually, even with a basic crane, is inefficient and dangerous. An integrated shaftless automatic loading system is essential. It’s designed to handle the high inertia and torque required to safely control and process these heavy rolls.
The Width and Diameter Factor: Non-wovens and Wide Films
For materials that aren’t necessarily dense but come in large formats, automation solves a different problem: unwieldiness.

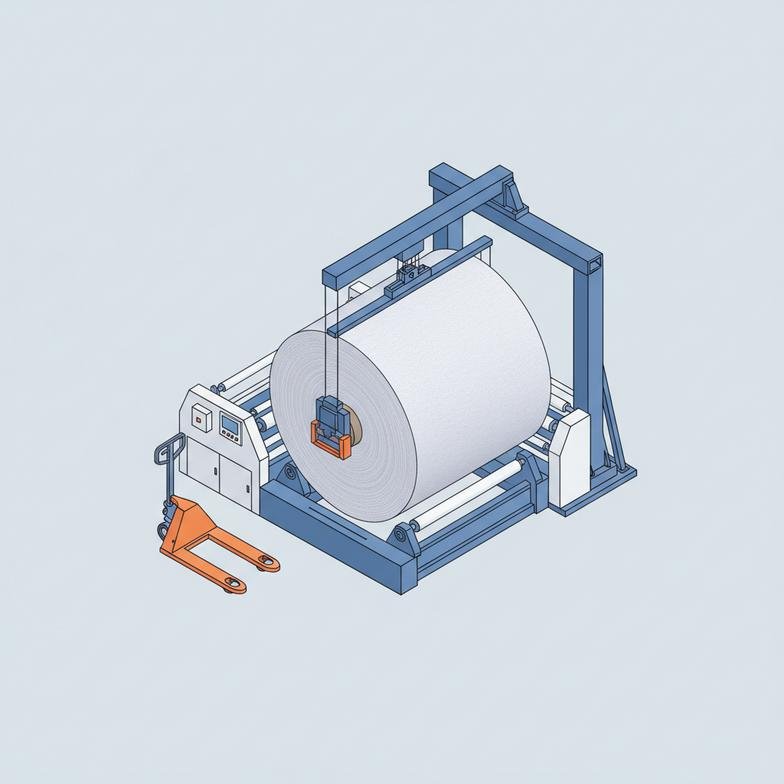

- Non-wovens: Spunlace and spunbond materials for hygiene or medical applications often come in very wide rolls (2 meters or more)[11]. While not as heavy as paperboard, their sheer size makes them awkward and difficult to align manually. An automatic system ensures the roll is loaded squarely, preventing wrinkles and tension issues that are common with these delicate materials.
- Wide Flexible Films: A wide roll of BOPP or PET film presents a similar challenge. Precise alignment is critical to prevent creases during slitting. The automated precision offered by a good loading system ensures the web path is perfect from the very start, which is essential for maintaining quality at high processing speeds.
The Delicacy and Value Factor
Sometimes, the material itself isn’t heavy or wide, but it’s either very delicate or extremely valuable.
- Specialty Films: Think of optical films or battery separator films. Any scratch, dent, or crease from mishandling can render a portion of the roll useless. A smooth, controlled automatic loading process can be gentler and more repeatable than manual handling, reducing the risk of costly damage.
- Pharmaceutical Packaging: For materials like aluminum blister foil, maintaining a pristine, undamaged surface is a regulatory requirement[12]. Automated handling minimizes human contact and the risk of contamination or damage, ensuring the material meets strict quality standards.
Ultimately, analyzing your material provides a clear, data-driven path in the manual loading vs automatic loading decision. Don’t guess; let the weight, width, and value of your rolls guide you to the right engineering solution.
Frequently Asked Questions
What is the typical weight limit for manual loading on a slitter rewinder?
While there’s no industry-wide standard, most safety experts recommend extreme caution with rolls over 500 kg (approx. 1100 lbs). Even with crane assistance, manual guidance becomes risky and difficult. For rolls consistently exceeding 800 kg, an automatic loading system is strongly advised for both safety and operational efficiency.
Does an automatic loading system require more maintenance?
Yes, it does have more components—such as hydraulic cylinders, sensors, and moving parts—which will require a preventative maintenance schedule. However, modern systems from reputable manufacturers are designed for high reliability in industrial environments. This trade-off is typically well worth the massive improvements in safety, speed, and consistency.
Can I upgrade a manual loading slitter to an automatic one later?
It is sometimes possible, but it’s often complex and expensive. A retrofit may require significant mechanical and electrical modifications to the machine frame and control system. It is almost always more cost-effective and better integrated to specify the automatic loading system you need from the beginning.
How much faster is an automatic loading changeover?
A typical manual changeover, including roll transport, core ejection, and new roll loading/alignment, might take 15–25 minutes. A fully automatic system can perform the same cycle in just 2–5 minutes. This consistent, rapid changeover can unlock hours of additional production time per day in a high-volume operation.
Conclusion
The choice between manual loading vs automatic loading for your slitter rewinder machine is not about finding a single “best” answer. It’s about conducting a thorough analysis of your specific operation. Manual loading offers a lower initial investment and is well-suited for flexible, small-batch production with lightweight materials. Conversely, automatic loading is a strategic investment in safety, consistency, and long-term throughput, providing a clear ROI for high-volume operations with heavy or standardized rolls. By evaluating your material properties, production volume, labor environment, and safety priorities, you can make an informed decision that supports your business goals for years to come.
If you are currently evaluating your slitting and rewinding needs, our team at JHSlitter is here to help. We can work with you to analyze the total cost of ownership for both options based on your specific materials and production targets. Contact us today to discuss how the right machine configuration can optimize your converting operations.
