leading paragraph: Struggling with slitting dust, bad edges, and frequent blade changes? This waste costs you money and harms your reputation. Understanding the fundamentals of blade selection ensures you get it right.

snippet paragraph: The best slitter blade depends entirely on your material and production goals. Start by choosing the slitting method: razor for thin, clean films, and shear for paper, foil, and nonwovens. Then, select a blade material and geometry that matches the method and your material’s properties.

Transition Paragraph: I often get the question, “What’s the best blade for my machine?” It’s a fair question, but it’s also the wrong one to start with. A blade that works perfectly for slitting PET film will fail miserably on thermal paper. The real goal is to find the most suitable cutting system for your specific needs. Let’s break down how to ask the right questions to prevent costly mistakes and get the clean cut your customers expect.

Should You Use Razor Slitting or Shear Slitting for Your Material?

leading paragraph: Choosing the wrong slitting method creates excessive dust or burnished, melted edges. This leads to customer complaints, rejected rolls, and a lot of frustration on the production floor.

snippet paragraph: Use razor slitting for thin, non-abrasive films like PET or BOPP^[1] where a clean, low-cost cut is needed. Use shear slitting with rotary blades for paper, laminates, foils, and nonwovens^[2]. Shear provides superior edge quality and dust control for these more challenging materials.

Dive deeper Paragraph: The choice between razor and shear slitting is the most important decision you will make, as it defines your entire cutting station. I see customers try to use one for a job that requires the other, and the results are always poor.

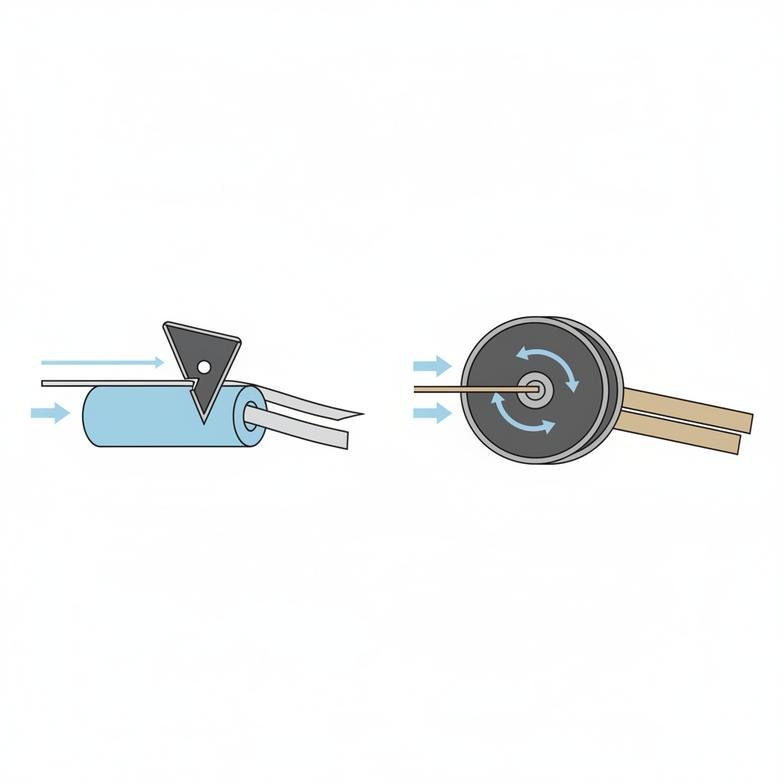

Razor Slitting: The Scalpel

Razor slitting is the simplest method. A stationary razor blade slices through the material as it passes over. It’s ideal for thin, clean plastic films. Because the blades are inexpensive and easy to change, it’s a very economical choice for the right application. However, the friction can generate heat, which can melt or burnish the edges of sensitive films^[3]. It’s also a poor choice for paper, foil, or nonwovens, as it tends to tear the fibers and generate a huge amount of dust^[4].

Shear Slitting: The Scissors

Shear slitting uses two rotary blades—a top and bottom knife—that work together like a pair of scissors. This method gives you a much cleaner cut on materials like paper, foil, laminates, and nonwovens. It fractures the material cleanly instead of tearing it, which dramatically reduces dust^[5]. While the setup is more complex and the blades are more expensive, the improved edge quality and ability to handle thicker, abrasive materials make it essential for most converting applications.

Feature	Razor Slitting	Shear Slitting
Best For	Thin, clean films (PET, BOPP)	Paper, foil, nonwovens, laminates
Edge Quality	Good, but can melt/burnish	Excellent, clean fracture
Dust Generation	High on fibrous materials	Very low
Cost	Low initial cost, disposable blades	Higher initial cost, resharpenable blades
Setup	Simple	More complex (angle, overlap)

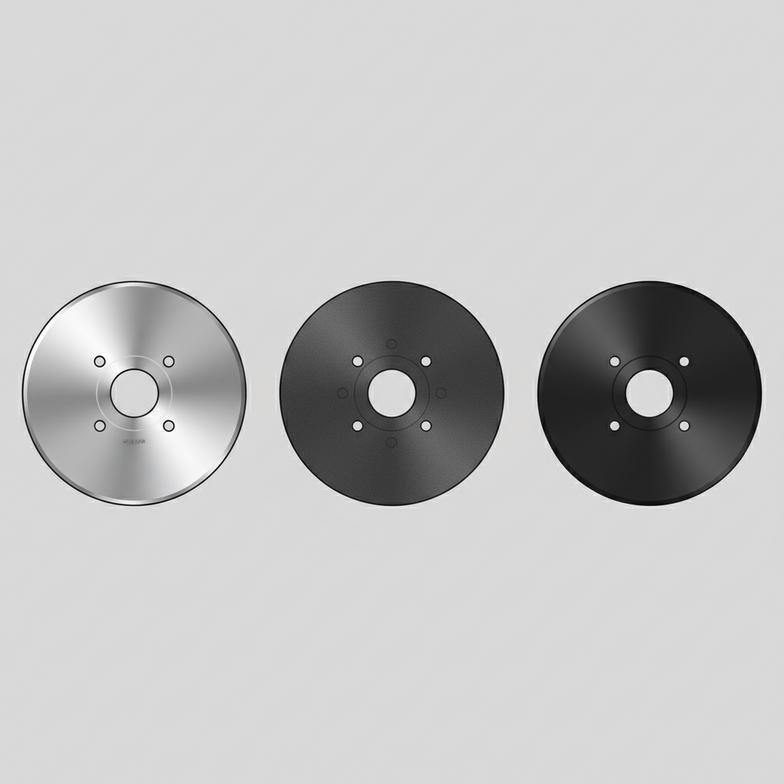

How Do You Select the Right Blade Material for Longevity and Quality?

leading paragraph: Are your blades wearing out too quickly, forcing frequent and costly line stops? This unplanned downtime kills your productivity and drives up your operational costs.

snippet paragraph: Standard carbon steel is the most affordable but wears fastest^[6]. D2 or similar tool steels offer a great balance of wear resistance and toughness^[7] for many materials. For highly abrasive products or long production runs, tungsten carbide offers the longest life but is more expensive and brittle.

Dive deeper Paragraph: Once you’ve chosen your slitting method, the next step is selecting the blade material. This is a trade-off between wear resistance, toughness, and cost. A harder material lasts longer but is often more brittle and expensive. I always advise customers to think about the total cost of ownership, not just the price of the blade.

Carbon Steel: The Entry Point

This is your basic, low-cost option. It’s relatively soft and wears quickly, especially with abrasive materials. It’s a good choice for short runs or for materials that are very easy to cut, but the frequent changes often make it more expensive in the long run due to downtime.

D2 / High-Carbon Tool Steel: The Workhorse

For most shear slitting applications, D2 and other high-carbon tool steels are the standard. They offer a great balance. They are hard enough to hold an edge for a reasonable time but still tough enough to resist chipping from minor vibrations. This is the material we recommend most often as a starting point.

Tungsten Carbide: The Endurance Champion

When a customer is slitting something very abrasive, like nonwovens with fillers or certain types of paper, we often see them dulling D2 blades in just a few hours. In these cases, tungsten carbide is the solution. It is extremely hard and can last 5 to 10 times longer than tool steel^[8]. However, it is also brittle, so the machine setup must be very stable to prevent chipping^[9]. The high initial cost is usually justified by the massive reduction in downtime.

Why Is Your New Blade Performing Poorly in Your Slitter?

leading paragraph: You just invested in expensive, high-quality blades, but your edge quality is still poor. You’re frustrated, confused, and wasting money on consumables that don’t seem to work.

snippet paragraph: A perfect blade will fail in a poor setup. Poor performance is often a mechanical issue, not a blade quality problem. Check that the blade holder is stable, the shear angle and overlap are correct, and the knife shafts have minimal runout. A stable machine is essential for a good cut.

Dive deeper Paragraph: I’ve seen it many times: a customer buys the “best” tungsten carbide blades but gets terrible results. The problem is rarely the blade itself. A slitting blade is part of a system, and if the system isn’t right, the blade cannot do its job. Before you blame the blade, you must check the machine’s mechanical setup.

The Importance of Holders and Runout

When a customer reports blade chipping, the first thing we investigate is runout. This is the wobble in the top or bottom knife shafts. Even a tiny amount of runout can cause the blades to crash into each other, shattering the cutting edge^[10]. The blade holders must also be rigid and hold the knife securely. Any vibration or movement here will translate directly into a poor cut.

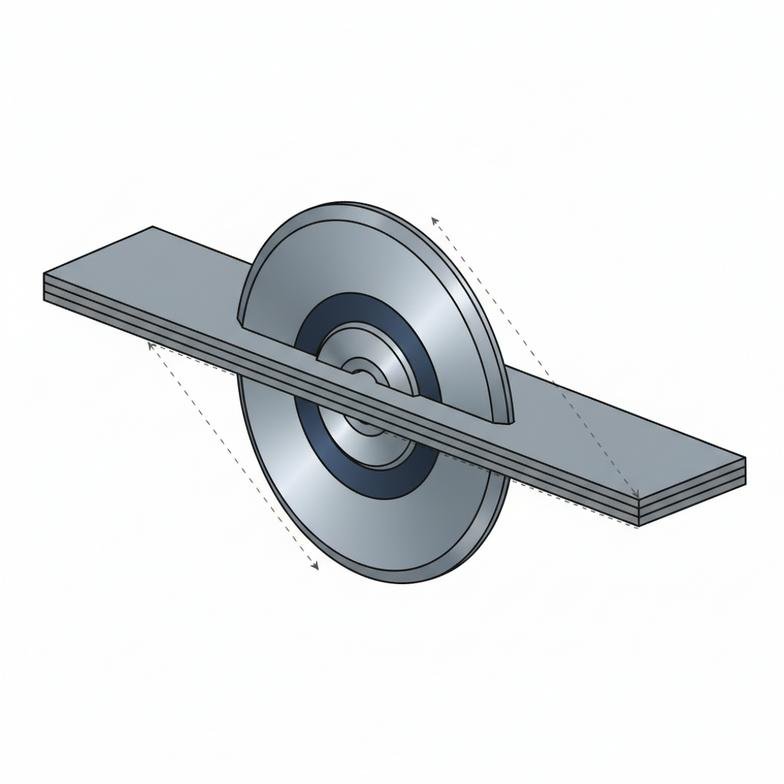

Setting the Correct Shear Angle and Overlap

For shear slitting, the setup is critical. The “shear angle” is the angle at which the top blade contacts the bottom blade.^[11] The “overlap” (or depth) is how far the top blade penetrates past the bottom one.^[12] There is no single universal setting; it depends on your material’s thickness and properties. Getting these wrong can cause a range of problems, from burnished edges and dust to rapid blade wear. We always provide our customers with a starting point for these settings based on their material samples.

Conclusion

The right blade is part of a complete system. Match the method, material, and machine setup to your specific product to ensure consistent quality and minimize expensive waste and downtime.
