Are you experiencing frustrating roll slippage, core damage, or inconsistent rewind quality? These issues often point back to a single, frequently overlooked component: the slitting machine air shaft^[1]. Choosing the wrong one can lead to production halts and material waste^[2], turning what should be a simple core-holding mechanism into a major operational headache.

A slitting machine air shaft is a pneumatic device used to grip and hold material cores securely on the unwind and rewind stations of a slitter rewinder. It uses compressed air to expand external elements—such as lugs or leaves—which press against the inner diameter of the core, ensuring it rotates without slipping during processing.

Now that we have a clear definition, you might think the job is done. But the real challenge isn’t understanding what an air shaft is, but selecting the right one for your specific material and production goals. Let’s dive deeper into the critical factors that separate a reliable shaft from a source of constant downtime.

What Are the Main Types of Slitting Machine Air Shafts?

Struggling to decide between a lug-type or a leaf-type shaft for your slitter? This is a common point of confusion, and making the wrong choice can lead to either damaged cores or insufficient grip, both of which hurt your bottom line.

The two primary types^[3] of slitting machine air shafts are lug-type and leaf-type. Lug-type shafts provide a powerful, concentrated grip suitable for heavy materials, while leaf-type shafts offer a gentler, more distributed pressure ideal for delicate films and sensitive cores^[4].

Dive Deeper: Lug vs. Leaf — A Critical Trade-Off

A frequent question we receive from customers is whether a lug-type air expanding shaft is always better because it seems stronger. The answer is no. The “best” type is not universal; it’s a decision based on managing risk for your specific application.

Lug-Type Air Shafts: The Workhorse

A lug-type air shaft is the most common design^[5] found in converting operations. It features a series of metal or rubber “lugs” that protrude from the shaft body when inflated.

• How it works: Compressed air inflates an internal bladder, which pushes the lugs outward with significant force. These lugs bite into the inner wall of the core, providing a very high-torque grip.
• Best for:
• Heavy rolls of paper, paperboard, and foil.
• High-tension applications where slippage is a major risk.
• Durable core materials like thick-walled paper or plastic.
• High-speed operations with rapid acceleration and deceleration.

The primary advantage of the lug design is its exceptional gripping power. However, this strength is also its main drawback. The concentrated pressure from the lugs can easily deform, mark, or even crush thin-walled or delicate cores^[6], especially those used for high-value films. In my experience, when a customer reports core damage on the rewind side, an overly aggressive lug shaft is often the culprit.

Leaf-Type Air Shafts: The Gentle Giant

A leaf-type air shaft (sometimes called a slat-type shaft) provides a much more gentle and uniform grip. Instead of individual lugs, it uses long metal or composite “leaves” that expand radially along the shaft’s length.

• How it works: When inflated, the bladder pushes the leaves outward, creating a 360-degree contact surface^[7] against the core’s inner wall. This distributes the clamping force evenly.
• Best for:
• Sensitive materials like thin PET, BOPP, or other flexible films.
• Thin-walled or easily damaged cores.
• Surface-critical applications where core marking is unacceptable.
• Applications requiring perfect concentricity to avoid vibration.

The key benefit here is core protection. By distributing pressure, a leaf shaft minimizes the risk of marking and ensures the core remains perfectly round, which is critical for smooth rewinding. The trade-off is a lower torque capacity^[8] compared to lug shafts, making them less suitable for extremely heavy rolls or very high-tension processes.

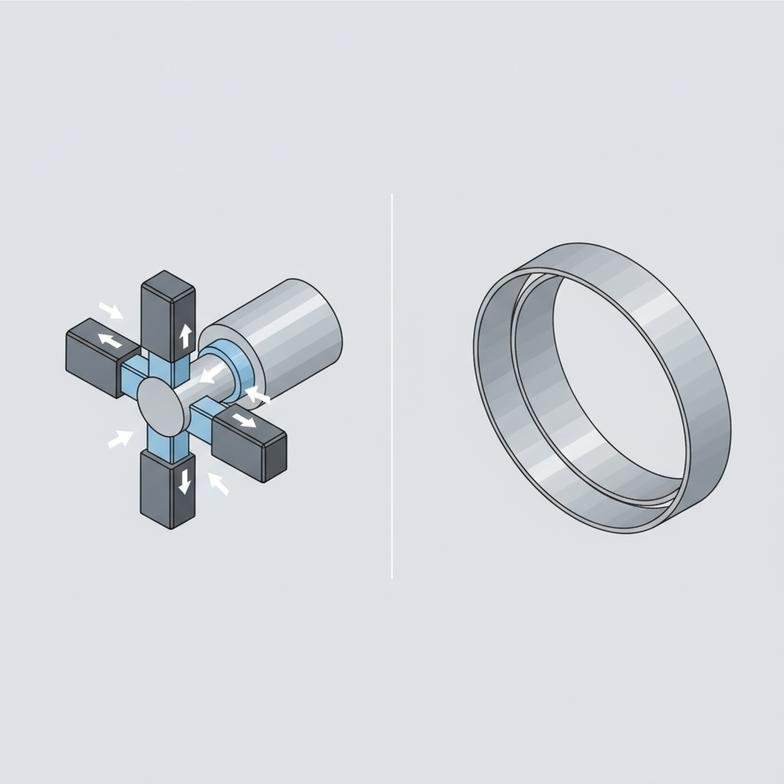

Lug-Type vs. Leaf-Type Comparison

Feature	Lug-Type Air Shaft	Leaf-Type Air Shaft
Gripping Mechanism	Concentrated pressure from individual lugs	Uniform, 360-degree pressure from long leaves
Grip Strength	Very High	Moderate to High
Best For Materials	Paper, Foil, Nonwovens, Heavy Rolls	Thin Films, Sensitive Materials, Flexible Packaging
Core Damage Risk	High (can mark or crush delicate cores)	Very Low (gentle on cores)
Primary Advantage	Maximum torque transmission	Protects core integrity and prevents marking
Common Application	Unwind for heavy jumbo rolls	Rewind for delicate finished rolls

How Do You Select the Right Slitting Machine Air Shaft for Your Material?

Have you ever purchased a slitter based on width and speed, only to find it can’t handle your specific material without issues? This happens when secondary components, like the air shaft, are overlooked. An improperly specified shaft can turn a new machine into a production bottleneck.

To select the right slitting machine air shaft, you must move beyond generic specifications and analyze four key factors: material type and sensitivity, roll weight and web tension, machine speed, and core inner diameter and material. The choice is a balance of these operational realities.

Dive Deeper: A 4-Point Checklist for Specification

To avoid a costly mismatch, you need to provide your machine supplier with a clear picture of your operational needs. Simply asking for a “1600mm air shaft” is not enough. Here is the information we always ask for to ensure we configure the right solution.

1. Material Type and Sensitivity

The material you are slitting is the single most important factor.

• Paper & Foil: These materials are often heavy and run at high tension. They typically require the strong grip of a lug-type shaft. Core damage is less of a concern.
• Films (PET, BOPP, PE): These materials are sensitive to tension and the cores are often thin-walled. A leaf-type shaft is almost always the safer choice to prevent marking and distortion, which can lead to telescoping in the finished roll.
• Nonwovens: Depending on the density and tension, nonwovens can use either type. A light, fluffy nonwoven might benefit from a leaf shaft, while a dense, heavy industrial nonwoven needs a lug shaft.

2. Roll Weight and Shaft Deflection

The maximum weight of your parent and finished rolls directly influences the shaft’s material and diameter.

• Roll Weight: A heavy roll exerts significant downward force. An undersized or improperly supported shaft will bend or deflect. Shaft deflection is a primary cause of web breaks and uneven rewinding^[9].
• Shaft Material (Aluminum vs. Steel):
• Aluminum shafts are lightweight, making them easier for operators to handle. They are perfect for narrower widths and lighter rolls.
• Steel shafts are heavier but significantly more rigid. They are essential for wide machines (>1600mm) and heavy rolls^[10] to prevent deflection. The operational difficulty of handling a heavy steel shaft is a necessary trade-off for production stability.

3. Machine Speed and Torque

The dynamic forces in your process matter.

• High Speed & High Torque: Rapid acceleration and deceleration place immense stress on the core-to-shaft connection. If the grip is insufficient, the core will slip, causing tension fluctuations and potentially scratching the material. Lug shafts excel here.
• Vibration: At high speeds, any imbalance or lack of concentricity is amplified, causing vibration. Leaf shafts, with their 360-degree grip, naturally promote better concentric rotation and can help reduce vibration issues with finished rolls.

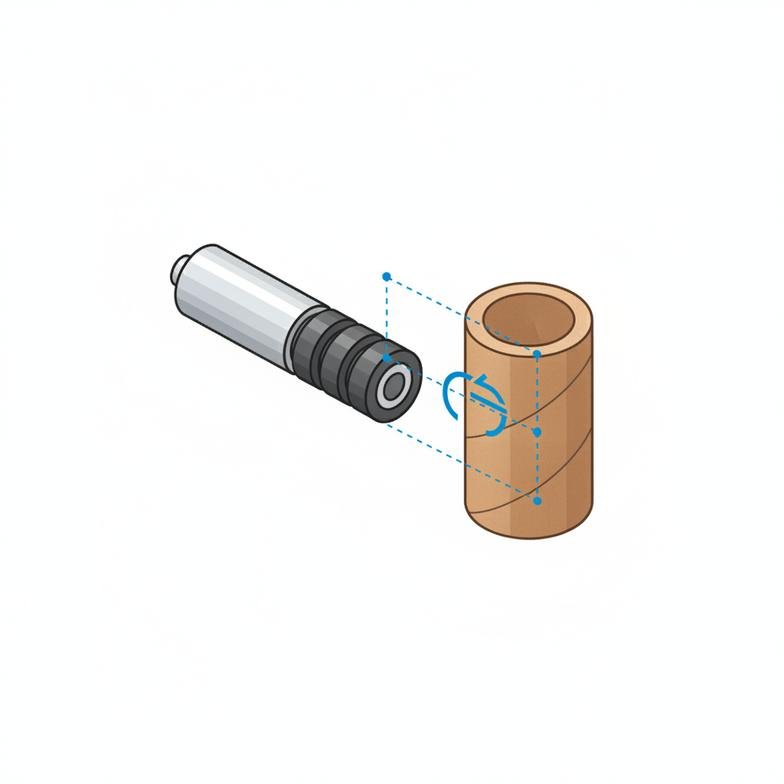

4. Core Inner Diameter (ID) and Material

The core itself is a critical part of the system.

• Core ID: Standard IDs are 3 inches and 6 inches, but many variations exist. The air shaft must be manufactured to match your exact core ID with tight tolerances.
• Core Material: Paper cores can compress slightly, which works well with lug shafts. Harder plastic or composite cores may not “give” as much, requiring a different lug design or a leaf shaft to ensure a secure grip without shattering the core.

What Are the Most Common Problems with a Slitting Machine Air Shaft?

Is your production team constantly battling air leaks, core slippage, or mysterious vibrations? These seemingly random failures are often symptoms of an underlying issue with your slitting machine air shaft, whether it’s a design mismatch, wear and tear, or improper use.

The most common problems with a slitting machine air shaft^[11] are air leaks from a damaged bladder or valve, poor grip causing the core to slip on the shaft, and shaft deflection or vibration due to a mismatch between the shaft material and the roll weight.

Dive Deeper: Troubleshooting Guide

Over the years, I’ve seen how these “small” problems can bring an entire production line to a standstill. Understanding the root causes is the first step to preventing them.

Problem 1: Air Leaks

An air leak is the most frequent failure mode. The shaft loses pressure, the grip loosens, and the roll becomes unstable.

1. Worn-Out Air Bladder: The internal rubber bladder is a consumable part. Over time, it becomes brittle, cracks, or gets punctured by debris. This is the number one cause of leaks^[12]. 2. Damaged Air Valve: The inflation valve can be damaged by impacts or wear out from repeated use, creating a slow but steady leak. 3. Scored Shaft Body: If dirt or a sharp piece of core debris gets inside the shaft, it can score the inner surface, creating a path for air to escape or damaging the bladder.

• Root Causes:

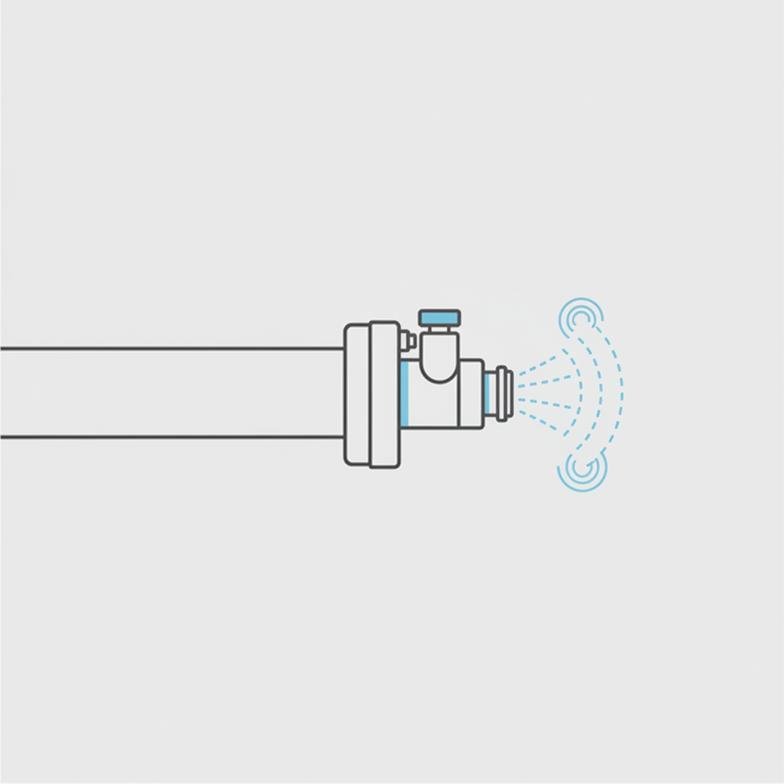

• Solution: Regular inspection is key. A simple test is to apply soapy water to the valve and along the shaft body seams after inflation; bubbles will reveal the leak. Bladder replacement is a standard maintenance procedure that should be part of your preventive maintenance schedule.

Problem 2: Poor Grip and Core Slippage

This is a silent killer of quality. The core slips slightly on the shaft, causing inconsistent winding tension and producing poorly finished rolls.

1. Incorrect Air Pressure: Operators might use too little pressure to avoid damaging the core, resulting in a weak grip. Conversely, too much pressure can crush the core, also leading to a loss of grip. 2. Wrong Shaft Type: Using a leaf shaft for a very high-torque application or a lug shaft on a hard plastic core can lead to slippage. 3. Worn Lugs/Leaves: The gripping elements themselves wear down over time, reducing their effectiveness.

• Root Causes:
• Solution: First, verify that you are using the correct air pressure for the roll weight and core type. We always advise customers to create a chart that specifies the correct pressure for each job. If the problem persists, inspect the lugs or leaves for wear and consider whether the shaft type is truly appropriate for the application.

Problem 3: Shaft Deflection and Vibration

This issue manifests as “bouncing” rolls at high speed or finished rolls that are hard on one side and soft on the other.

1. Shaft Material Mismatch: As discussed, using a lightweight aluminum shaft for a wide, heavy roll of paper is a recipe for deflection. The shaft will physically bend under the weight. 2. Imbalance: A bent shaft or an unevenly wound parent roll can create an imbalance that causes severe vibration at high speeds, which can lead to web breaks.

• Root Causes:
• Solution: This is fundamentally a specification issue. If you are experiencing deflection, the only real solution is to upgrade to a more rigid shaft, likely moving from aluminum to steel or increasing the shaft diameter. This is why getting the specification right before you buy is so critical.

Frequently Asked Questions

Can I use one slitting machine air shaft for both paper and film?

While technically possible, it’s a compromise. A lug-type shaft, ideal for heavy paper, risks damaging the delicate cores used for film. A leaf-type shaft, perfect for film, may not provide enough torque for heavy paper rolls, leading to slippage. The best practice is to use the appropriate shaft for each material.

What’s the difference between an aluminum and a steel air shaft?

The main difference is the trade-off between weight and rigidity. Aluminum shafts are lightweight and easy for operators to handle, making them suitable for narrower machines and lighter rolls. Steel shafts are much heavier but are significantly stronger and more resistant to bending (deflection), making them necessary for wide machines and heavy rolls.

How do I know the correct air pressure to use?

The correct air pressure depends on the roll weight, core material, and shaft type. Start with the manufacturer’s recommendation and adjust based on performance. Use enough pressure to prevent slippage but not so much that you deform or damage the core. It’s wise to document the optimal pressure for each specific job.

What is the difference between an air shaft and a mechanical shaft?

An air shaft (pneumatic) uses compressed air to expand its gripping elements. A mechanical shaft uses a mechanical mechanism, often a cam or wedge system activated by turning a screw at the end of the shaft, to expand its lugs. Mechanical shafts provide a very secure, non-slip grip but are slower to engage and disengage than air shafts.

Conclusion

Choosing the right slitting machine air shaft is far more than a minor detail; it is a fundamental decision that directly impacts your production stability, material waste, and final product quality. There is no single “best” shaft—the ideal choice is always a carefully considered trade-off between the powerful grip of a lug-type shaft and the gentle support of a leaf-type shaft, matched to your specific material, roll weight, and operating speed. By understanding these variables and communicating them clearly, you can de-risk your investment and ensure your machinery performs as expected from day one.

If you are evaluating a new slitter rewinder or looking to solve recurring roll-related issues, don’t leave the air shaft specification to chance. Contact our technical team at JHSlitter. We can help you analyze your application and configure the right components to avoid costly production failures.
