An edge burr on slit material is more than a quality defect; it is a diagnostic signal. The first instinct for many operators is to stop the machine and replace the blades, assuming they are dull. But when the burrs reappear with a brand-new set of blades, it is a clear sign that the root cause is hiding somewhere else in the process.
The problem is often not the blade’s sharpness but how it is interacting with your material. Before you waste another set of blades or accept high scrap rates, it is worth understanding the systematic process an experienced technician uses to diagnose the real cause.
Edge burrs are most often caused by a handful of adjustable factors. To fix them, you should systematically check your blade condition for dullness or chips, verify the blade setup-especially the horizontal and vertical clearance for your specific material-and confirm that your web tension is not too high or too low for the slitting speed.
A supplier who just sells you new blades without asking about your material, clearance, and tension settings is not solving your problem. They are just selling you a part. The real solution starts with a logical diagnosis.
What Are the First Things to Check When You See Edge Burrs?
When troubleshooting, always start with the simplest and most common causes before moving to more complex ones. Do not change the speed, tension, and blades all at once. Change one variable, check the result, and then move to the next. Otherwise, you will never know what the real fix was.
Your diagnostic sequence should be:
- Blade Condition: Are the blades genuinely dull, chipped, or the wrong type for your material? This is the fastest check.
- Blade Setup (Clearance): Is the overlap and angle between the top and bottom knives set correctly for your material’s thickness? This is the most common hidden cause.
- Process Parameters: Is your web tension or slitting speed creating instability at the point of the cut?
- Machine and Material: Are you dealing with a deeper issue like machine wear or a new, different batch of material?
How Can I Tell if My Blades Are Dull, Damaged, or the Wrong Type?
A blade that fits the holder is not necessarily the right blade for the job. Its condition and material type have a significant impact on the cut.
- Visual Inspection: Do not just glance at the blade. Stop the machine, follow proper safety procedures, and remove the blade. Inspect the cutting edge under a good light with a magnifying glass or a shop microscope. Look for small nicks, chips, or a visible rounding of the sharp point. A rough, torn, or dusty slit edge often points to a dull or damaged blade.
- Blade Material: Blades are made from different materials for a reason. A standard D2 steel blade might work well for paper, but it will wear quickly when slitting abrasive materials. For those applications, a tungsten carbide blade may offer a much longer service life, reducing changeovers. Using the wrong blade material can lead to rapid dulling and burrs.
- Blade Geometry: The bevel angle of the blade is also important. A blade designed for paper may have a different angle than one designed for thin film. Using the wrong geometry can cause the material to tear or deform rather than shear cleanly.
What Is Blade Clearance and How Do I Check if It’s Set Correctly?
This is where most persistent burr problems hide. A brand-new, sharp blade is not automatically the solution to edge burrs. If it is installed with the wrong clearance for the material, it will still produce a bad edge and can even be damaged prematurely.

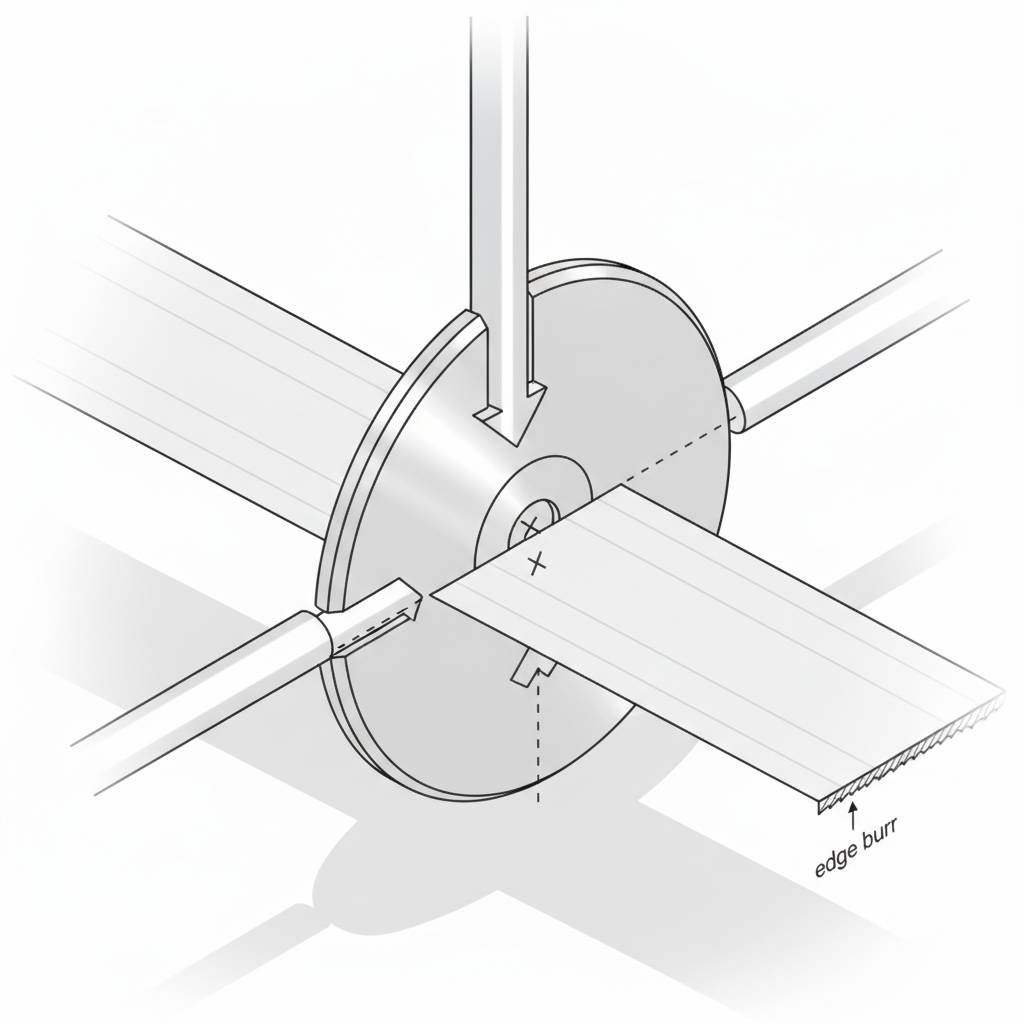

In shear slitting, “clearance” refers to the precise relationship between the top and bottom circular blades. There are two key parameters:
- Horizontal Overlap: How far the top blade overlaps the bottom blade.
- Vertical Clearance (Cant Angle): The slight angle of the top blade relative to the bottom blade.
A photo of the burr tells a supplier a lot. A rough, torn edge suggests a dull blade, but a clean, curled “flag” of material points to the blade clearance being too tight or the cant angle being incorrect. The material is being bent and torn, not cleanly sheared.
The correct clearance is specific to the material type and its thickness. A 12-micron PET film requires a completely different setup than a 100gsm paperboard.
Your First Check: Refer to your machine manual or the blade manufacturer’s specifications for the recommended clearance settings for your material. If you do not have this information, ask your machine supplier for a recommended starting point for your material type and thickness.
Warning: For your safety, always follow your facility’s established safety protocols for machine de-energization and lockout. Confirm the machine is completely stopped before inspecting, cleaning, or adjusting blades and other moving parts.
Could My Web Tension or Slitting Speed Be Causing the Burrs?
If your blades and setup are correct, the next place to look is your process parameters.
- Insufficient Web Tension: If tension is too low, the material web can flutter or wander as it enters the slitting station. An unstable web cannot be cut cleanly, resulting in inconsistent edges and intermittent burrs.
- Excessive Web Tension: Simply increasing tension is not always the answer. Too much tension can cause the material to stretch and narrow before it reaches the blades-a phenomenon called “neck-in.” This deforms the material at the cut, creating a hard, raised edge that feels like a burr.
- Excessive Speed: The most productive speed is the fastest speed that maintains consistent, defect-free quality. Pushing the speed beyond a stable point for your material can induce web flutter, requiring you to add excessive tension, which leads back to the problems above.
For stretchy films, the question is not just about the slitting station. The harder part is maintaining stable web tension before the cut, because any flutter or “neck-in” will cause the material to interact with the blade inconsistently.
A Practical Checklist for Diagnosing Edge Burrs
Use this table as a systematic guide on the factory floor. Move from symptom to a specific, actionable check.
| Observation / Symptom | Likely Cause | What to Check First (Operator Action) |
|---|---|---|
| Rough, torn, or dusty edge. | Dull or chipped blade. | Stop the machine. Remove and inspect the blade edge under magnification for nicks, chips, or a rounded cutting point. |
| A consistent, thin “flag” or curled sliver along the edge. | Incorrect blade clearance (overlap/cant angle). | Check the horizontal overlap and vertical clearance. Compare to manufacturer recommendations for the material thickness. |

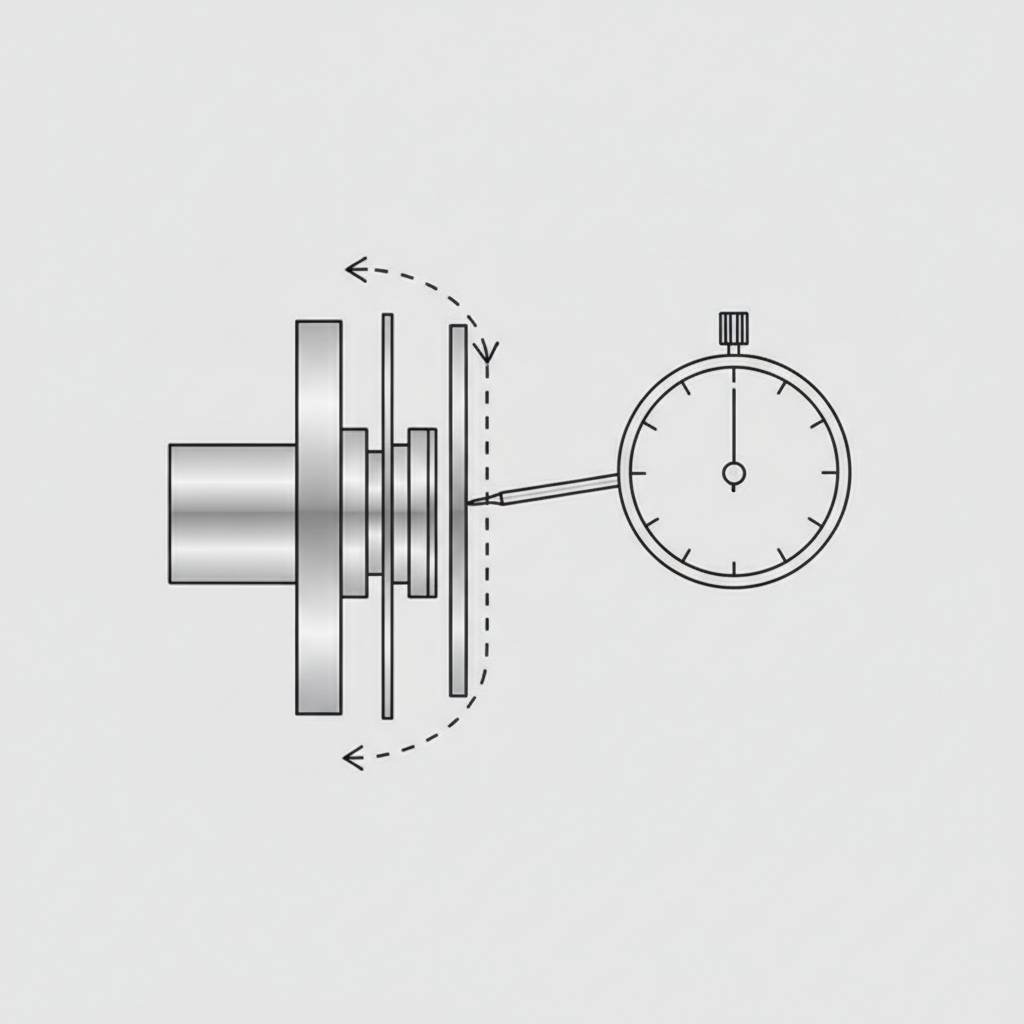

| Burr appears and disappears, or the edge looks wavy. | Blade or shaft runout (wobble). | With the machine off, use a dial indicator to measure the runout on the side face of the blades and on the knife shafts. |
| Burr appears when machine speed is increased. | Web flutter or excessive tension. | Observe the material web just before the slitting section at high speed. If it’s vibrating, the web is unstable. |
| Slit width is narrower than set; edge feels hard. | Excessive web tension (“neck-in”). | Measure the slit width of finished rolls. If narrower than the blade spacing, try incrementally reducing unwind tension. |
| A new roll of material suddenly produces burrs. | Material variation. | Compare the Certificate of Analysis (COA) of the new material to the old. Check for changes in thickness or hardness. |
What Information Should I Prepare Before Asking a Supplier for Help?
If you have worked through the checklist and the problem persists, it is time to ask for expert support. To get a fast and accurate solution, you need to provide more than a simple “my machine has burrs” email.
Before contacting your machine supplier, gather the following information:
- Material Details: The exact material type (e.g., PET, aluminum foil, spunbond nonwoven), its thickness in microns or gsm, and its hardness if known.
- Blade Details: The type of blade you are currently using (material, dimensions).
- Machine Settings: The current slitting speed, web tension settings, and blade clearance settings, if you were able to measure them.
- Visual Evidence: Clear, well-lit photos or a short video of the edge burr. A close-up of the defect is extremely helpful. Also, include a photo of the slitting station.
- Problem History: When did the problem start? Did it begin after a material change, a blade change, a speed increase, or a maintenance event? What have you already tried to fix it?
With this information, a supplier can stop guessing and start providing a useful diagnosis. This turns a frustrating problem into a productive technical discussion, which is the fastest path to a reliable solution.
