A photo of a wrinkled roll or a report of a web break tells a supplier you have a problem, but not where to start looking. Randomly adjusting the unwind brake, the dancer arm pressure, or the rewind tension is a fast way to create more scrap material and lose valuable production time. The machine has dozens of settings, but only a few are likely related to your specific defect.

The location of the problem is the most important clue. A wrinkle that appears before the slitting knives points to a completely different cause than a telescoping finished roll. Without knowing where to look first, an operator is just guessing, and a machine that is perfectly capable of producing good rolls continues to cause downtime.

A good starting point for diagnosing slitting machine tension problems is to first identify where the defect appears on the web path. This helps isolate the issue to a specific zone: unwind, in-feed, or rewind. Before inspecting mechanical parts, check the operator settings for that zone, such as the taper tension for rewinding or the brake mode for unwinding, as these are frequent causes of common defects.

This diagnostic approach helps you move from guessing to a logical, step-by-step process. It allows you to rule out simple settings issues before assuming a more complex or costly mechanical failure.

What’s the First Step? Isolate the Problem Zone

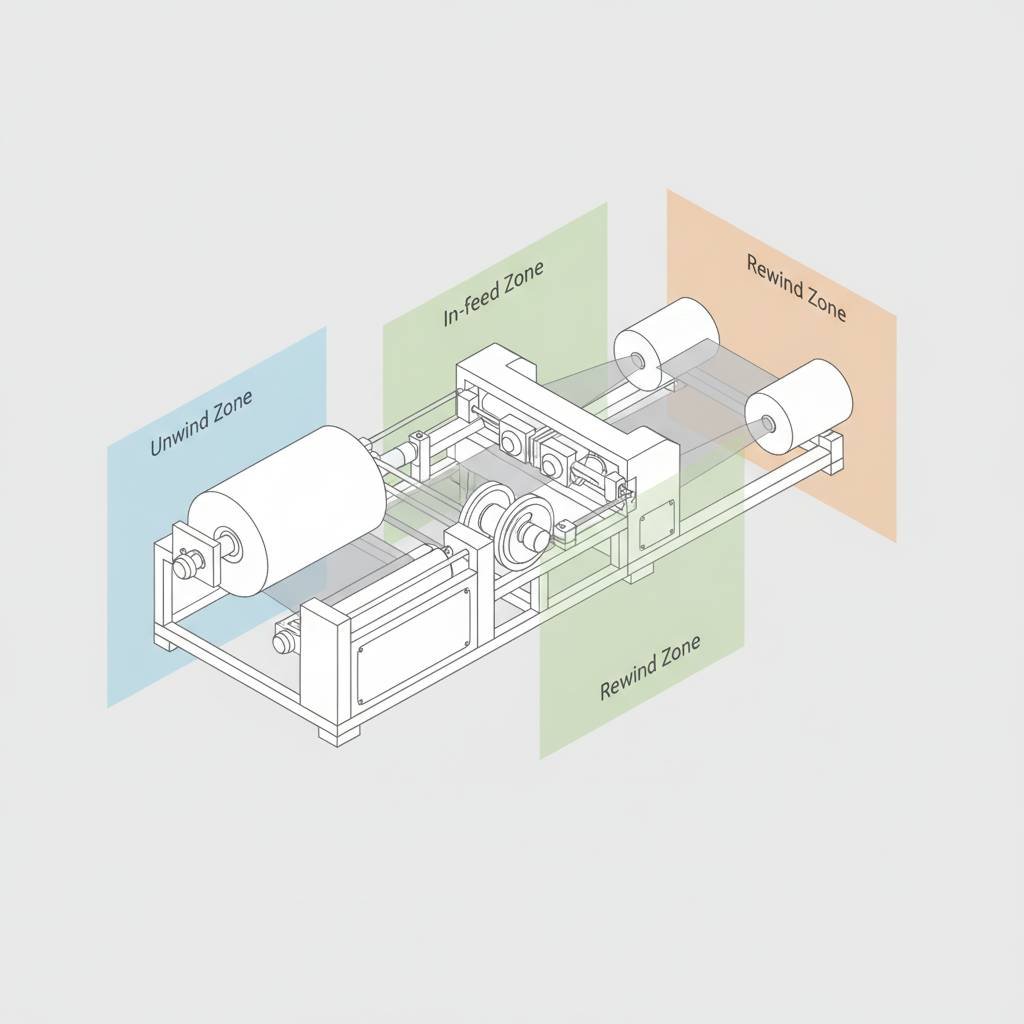

Before you adjust any setting, look at the web path. A slitting machine has three main tension zones, and the location of your defect is the best clue to which zone is causing the trouble.

1. Unwind Zone: This is where the parent roll is held and braked. Problems here, like inconsistent braking or a lopsided roll, affect the web from the very beginning. Symptoms often appear before the material reaches the slitting knives. 2. In-Feed / Slitting Zone: This section, which often includes dancer rollers or load cells, measures and paces the web into the knives. It isolates the unwind tension from the rewind tension. Fluctuations here can cause breaks or subtle inconsistencies. 3. Rewind Zone: This is where the new, finished rolls are built. Issues here directly affect the final roll quality, causing defects like telescoping, starring, or loose rolls. These problems are created as the material is being wound.

A report of "unstable tension" is a starting point, but knowing if the dancer arm is bouncing (in-feed issue) or the finished rolls are soft (rewind issue) lets a technician know exactly where to look first.

Checking for Problems in the Unwind Zone

The unwind zone’s job is to provide a consistent, controlled resistance or "drag" on the parent roll. If the web is wrinkling or breaking before it even gets to the knives, start your checks here.

• Check the Brake Setting: Is the tension set too high, causing breaks? Or too low, allowing the web to go slack? If your machine has an automatic (taper) brake mode, confirm it’s active and that the diameter sensor is clean and working. A dusty sensor gives the controller bad information.
• Inspect the Parent Roll: The slitter can only work with the material it’s given. Before you blame the machine, check the parent roll. Press your hands across the face of the roll. Do you feel soft spots or hard ridges? An unevenly wound parent roll will feed in with inconsistent tension, and the slitter will simply reveal this pre-existing flaw.
• Check for Mechanical Drag: With the machine safely stopped and locked out, try to turn the unwind shaft by hand. Does it move smoothly, or does it stick or grind? Sticking bearings or a grabbing brake can send tension shocks down the web.

Inspecting the In-Feed and Slitting Zone

This middle zone acts as the machine’s pacemaker. It uses a dancer roller or load cells to measure tension and tell the drive motor how fast to pull the web.

• For Dancer Roller Systems: A dancer arm should move smoothly up and down, responding to small changes in tension. If it’s bouncing erratically or seems stuck, the tension feedback is compromised. Check that the arm’s pivot points are clean and move freely. Also, verify the air pressure setting for the dancer’s pneumatic cylinders is correct for your material.
• For Load Cell Systems: Load cells are precise sensors that measure tension directly. Their most common issue is incorrect calibration. Most control systems have a function to "zero" the load cells. With no material webbed through the machine, check that the tension reading on your HMI screen is zero. If it’s not, run the zero-point calibration function.

A request for a new tension controller is an expensive guess. First, confirm the controller is receiving good information. A controller can’t fix a problem caused by a sticking dancer arm or an uncalibrated load cell.

Controlling Finished Roll Quality in the Rewind Zone

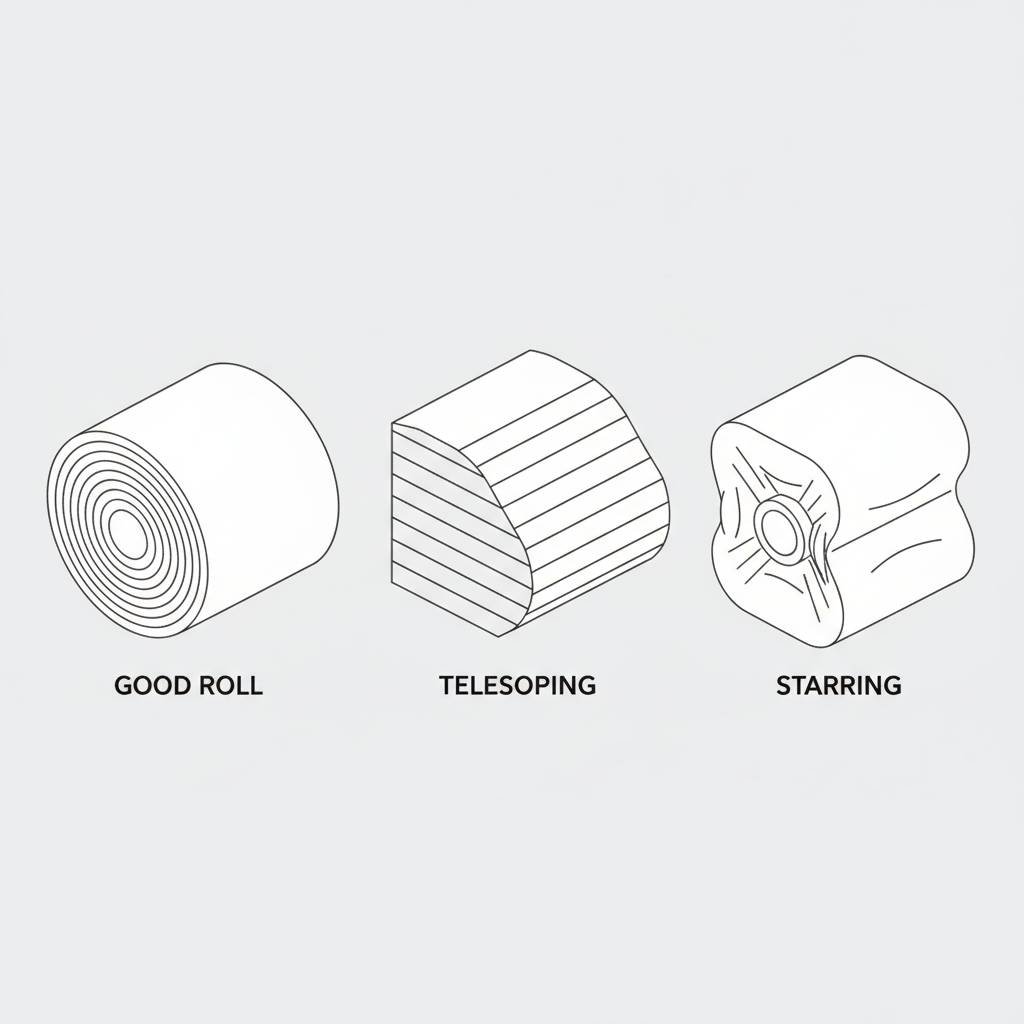

The rewind zone is where your final product is created. Most finished roll defects, like telescoping or starring, are born here. The common mistake is thinking "tighter is always better." The goal is a stable roll, not just a tight one.

• Base Rewind Tension: This is the primary tension setting. If rolls are too loose or "soft," you may need to increase this value.
• Taper Tension: This is a key setting for building good rolls. As a roll gets bigger, the same amount of web tension creates more internal pressure. Taper tension gradually reduces the winding tension as the roll diameter increases. If your rolls are "starring" (deforming at the core) or crushing cores, you likely have too much internal pressure. The solution is often to increase the taper percentage, not just lower the base tension.
• Lay-On Roller Pressure: For non-permeable materials like film, a lay-on (or contact) roller is used to squeeze out air as the roll is being wound. If this pressure is too low, trapped air can cause loose, unstable rolls. If it’s too high, it can damage sensitive materials.

A "telescoping" roll tells a supplier there’s a rewind issue, but not whether the taper tension is too low, the lay-on roller pressure is wrong, or the rewind shafts are slightly bent. Checking the settings first is the fastest way to diagnose the problem.

Diagnostic Checklist: Matching Symptoms to Causes

Use this table as a quick reference to guide your first checks. It helps you move from a symptom to a logical starting point for your diagnosis.

Symptom (What You See)	Likely Problem Zone	First Thing to Check (Setting/Operator)	Next Thing to Check (Mechanical/Material)
Wrinkles before slitting knives	Unwind / In-feed	Check web path alignment and unwind brake settings. Confirm dancer arm air pressure.	Inspect parent roll for unevenness. Check for sticking or worn unwind shaft bearings.
Web breaks during speed changes	Unwind / Rewind	Review acceleration/deceleration compensation parameters in the HMI.	Check for sticking brakes or a lagging motor response.
Telescoping in finished rolls	Rewind	Check the taper tension percentage. A setting that is too low is a common cause.	Confirm rewind shafts are not bent. Inspect the lay-on roller for even pressure.
Loose or "soft" finished rolls	Rewind	Increase the base rewind tension setting. Check the lay-on roller pressure.	Check for air trapped between layers (common with films). Check core quality and grip.
"Starred" rolls or crushed cores	Rewind	Decrease the base rewind tension and/or increase the taper tension percentage.	Inspect the lay-on roller pressure to see if it is too high.
Unstable tension reading on screen	In-feed / Unwind	Re-calibrate the load cells to zero without any web.	Check that the dancer roller moves freely without sticking. Inspect load cell connections.

How to Tell if the Problem Is the Machine or the Material

The most common diagnostic mistake is assuming a machine part is broken when the issue is the material itself. Before you schedule major maintenance, run a simple test.

If you have a roll of a "known good" material that typically runs without any issues, load it onto the machine. Use the same settings that you know work for that material.

If the problem disappears, you have strong evidence that the issue is not with the machine, but with the batch of material you were trying to run previously. If the problem persists even with the good material, it confirms that you should continue investigating the machine’s settings or mechanical condition.

What Information to Prepare Before Calling for Support

If you’ve worked through these checks and the problem continues, it’s time to ask for help. You can get a much faster and more accurate solution from a supplier or service technician by preparing the right information ahead of time.

Before you call or email, gather the following:

• Machine Model and Serial Number.
• Material Type, Thickness, and Width.
• The Specific Defect: (e.g., wrinkles, telescoping, web break).
• Where and When the Defect Occurs: (e.g., "after the knives, only on the left side" or "during acceleration").
• Your Current Tension-Related Settings: (e.g., Unwind tension, Rewind tension, Taper %).
• A Clear Photo or Short Video of the Problem.

Having this data ready helps an engineer understand the issue immediately. It moves the conversation from "my machine is broken" to "I’m seeing this specific defect under these conditions," which is the first step toward a quick and effective solution.
