You see a finished roll of aluminum foil coming off the slitter with fine, diagonal wrinkles. The operator has already tried lowering the tension, then raising it, but the problem persists. Each adjustment seems to make things worse, and another roll is headed for the scrap bin.
This is a common and costly frustration. The assumption is that all wrinkles are a “tension problem.” But for a sensitive material like aluminum foil, this is often incorrect. The type and location of the defect are clues that point to specific mechanical causes, and randomly adjusting one setting can mask the real issue.
To help reduce wrinkles and edge damage when slitting aluminum foil, you should focus on matching the machine’s capabilities to the material’s sensitivity. This involves confirming the machine has a responsive, closed-loop tension control system, verifying the precision of the roller alignment, and using the correct shear slitting configuration for your specific foil thickness.
From a machine supplier’s perspective, wrinkles and edge burrs are not random. They are predictable symptoms. Understanding what these symptoms mean is the first step toward a stable process. It helps you diagnose your current machine and, more importantly, helps you specify a new machine that prevents these issues from the start.
When looking for high-quality equipment, our Foil Slitting Machine is specifically designed to handle these challenges with precision.
What Do Different Types of Wrinkles in Foil Tell You?
Not all wrinkles are the same. Before adjusting any setting, look closely at the defect. The wrinkle’s shape and location on the roll tell a story about the root cause.
- Diagonal Wrinkles: If you see wrinkles running at an angle across the web, the problem is a strong indicator of roller misalignment. One side of the foil is being forced to travel a longer path than the other. No amount of tension adjustment will fix this. The rollers in the web path need to be parallel. This requires a rigid machine frame and precise installation.
- Transverse Wrinkles (Across the Web): Wrinkles that run straight across the web width often point to inconsistent tension. This can be caused by an out-of-round parent roll or a tension control system that isn’t responsive enough to manage fluctuations.
- Wrinkles or Creases Near the Rewind Core: If the finished rolls look good on the outside but are creased or crushed near the core, the issue is likely the rewind tension. As a roll builds in diameter, its weight increases. Without a system that reduces tension as the roll grows (known as taper tension), the inner layers can get compressed, causing damage.
How Does the Tension Control System Affect Foil Quality?
A key challenge with aluminum foil, especially thinner gauges below 12 microns, is its low elasticity. Unlike plastic film, it tends to deform permanently rather than stretching and recovering. This is why the tension control system is an important part of a foil slitter.
A basic system might use a manual powder brake (an open-loop system). The operator sets the tension, and it stays there. This type of system often struggles to provide the responsiveness needed for thin foils, increasing the risk of defects. As the parent roll unwinds, its diameter and inertia change, requiring constant tension adjustments.
A machine configured for foil uses a closed-loop tension system. This typically involves a “dancer roll” or load cells that physically measure the web tension in real-time and automatically adjust the unwind brake and rewind motors.
- Dancer Roll System: A weighted roller “dances” on the web. Its movement provides immediate physical feedback to the control system, which adjusts motor torque or brake pressure to maintain a constant tension value. This is highly effective for managing out-of-round rolls and for stability during acceleration and deceleration.
- Spreader Rolls: Before the foil reaches the slitting station, it often passes over a “bowed” or “banana” roll. This spreader roll helps to gently flatten the web, removing any minor bagginess from the parent roll and preventing those loose spots from being slit into wrinkles.
When you inquire about a machine, don’t just ask if it “has tension control.” Ask the supplier to describe the type of tension control system on both the unwind and rewind stations.
Why Is Your Slitting Station Setup More Than Just a Sharp Blade?
A poor-quality slit edge with burrs or fine metal slivers is another common source of rejection. Many operators assume the solution is simply to install a new, sharper blade. While blade sharpness matters, the entire slitting station setup determines the final edge quality.

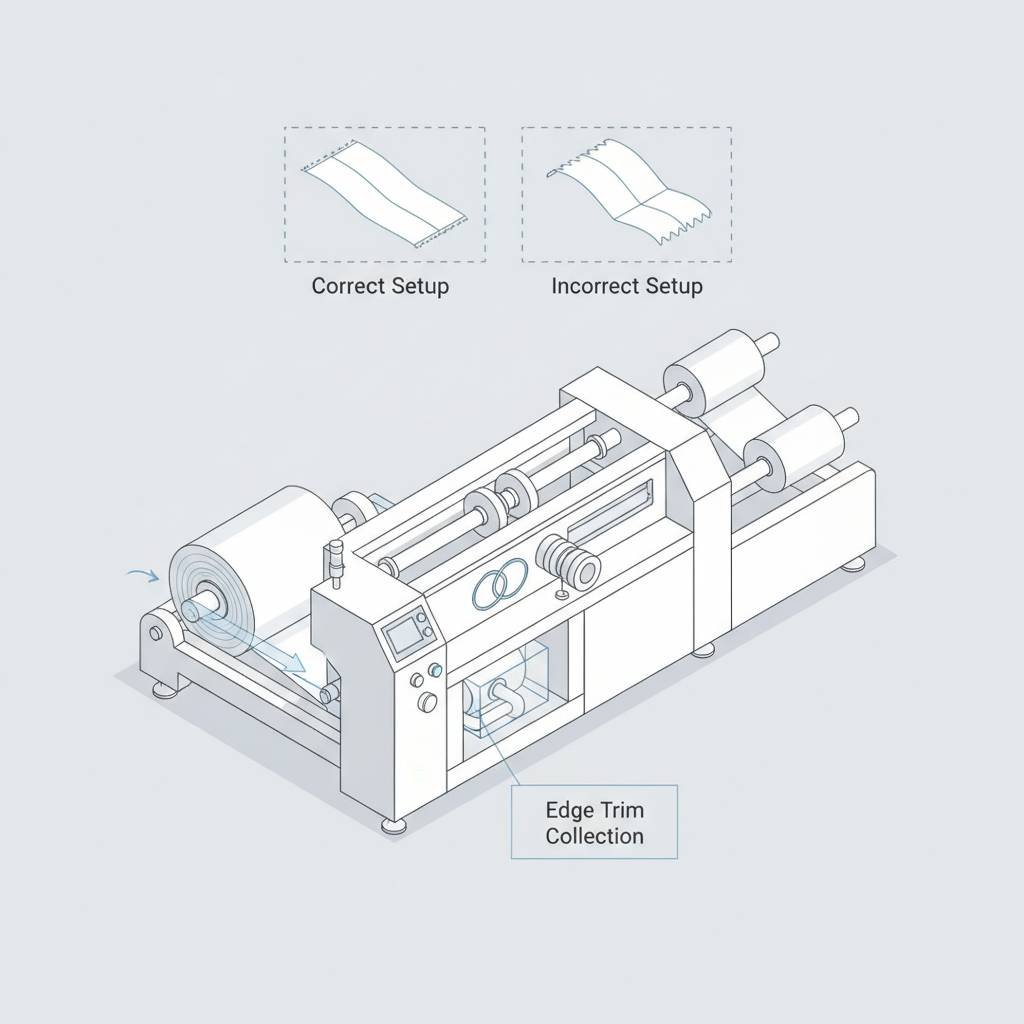

For most aluminum foil applications, shear slitting is the preferred method. This uses a pair of circular knives (a top and bottom blade) that act like scissors to cut the material. The key is in the setup:
- Blade Overlap & Gap: The degree to which the top and bottom blades overlap is a key factor. Too much overlap can crush the foil edge and create burrs. Too little, and the foil may not be cut cleanly. This setting needs to be precise and matched to the foil’s thickness.
- Blade Holder Rigidity: The holders for both the top and bottom blades should be extremely rigid. Any wobble or “play” in the holders will result in an inconsistent cut and a poor edge, no matter how sharp the blades are.
- Contact Roller: The web is supported by a hardened contact roller as it passes through the knives. The surface condition and concentricity of this roller are also important for a clean cut.
When evaluating a machine, check the micro-adjustment capabilities of the blade holders. Can an operator make small, repeatable changes to the blade overlap and side pressure? This level of control helps achieve a clean, burr-free edge on sensitive foils.
Troubleshooting Checklist: From Foil Defect to Solution
If you are facing wrinkles or edge damage, avoid making random adjustments. Follow a logical diagnostic process to find the root cause. This table outlines common symptoms and what to check.
| Symptom Observed (The Defect) | Likely Mechanical Cause | What an Operator Can Check | Key Question for a Supplier |
|---|---|---|---|
| Diagonal wrinkles across the web. | Misaligned rollers in the web path. | Use a level or tramming tool to check key roller parallelism. Inspect for worn bearings. | “What are your machine frame’s machining tolerances and how is roller alignment verified?” |
| Wrinkles or creases near the rewind core. | Incorrect rewind tension (no taper), crushing inner layers. | Check if rewind tension is set to decrease as the roll diameter increases. | “Does your rewinding system use programmable taper tension control?” |
| Rough, burred, or damaged slit edges. | Incorrect shear blade setup (overlap/gap) or non-rigid blade holders. | Inspect blade overlap and check blade holders for any wobble or play. | “How precise are the micro-adjustments for your shear blade holders?” |
| Random, intermittent wrinkles or web flutter. | Unresponsive tension control system. | Watch the dancer arm: it should make small, constant adjustments, not swing wildly. | “What type of closed-loop tension control do you use (dancer, load cell) for thin foils?” |
How to Prepare Your Inquiry for a Foil Slitting Machine
A generic inquiry like “price for a foil slitter” will likely get you a quote for a generic machine that may not solve your problems. To get a meaningful recommendation and an accurate quotation, you need to provide the right details. This helps a supplier understand the true demands of your application.
I would rather clarify these details before production than let a buyer discover a machine’s limits after delivery. Preparing this information helps us configure a machine that will deliver the quality you need and reduce material waste from day one. Our Foil Slitting Machine solutions are built exactly for this purpose.
Before requesting a quotation, prepare the following:
- Material: Your aluminum foil type, alloy, and thickness range (in microns).
- Parent Rolls: The maximum width and diameter of the rolls you will be slitting.
- Finished Rolls: Your required minimum and maximum slit widths and finished roll diameter.
- Core Size: The inner diameter of the cores you use for rewinding.
- Defects: If you are currently experiencing issues, send a short video or clear photos of the wrinkles or edge damage. This is one of the most helpful details you can provide.
Sharing these parameters allows a supplier to propose a machine with the correct tension control, web path design, and slitting station configuration for your specific needs, making the entire sourcing process more effective.
