A new master roll of film is loaded, the slitter starts running, and within minutes, you see it: wrinkles forming in the web, or finished rolls that are starting to telescope. The first instinct for many is to blame the film roll itself. It’s a frustrating moment that costs you in wasted material, production downtime, and a cycle of guesswork.
But what if the film isn’t the problem? While material can have issues, our experience shows that most slitting defects are symptoms of a mismatch between the film’s properties and the machine’s setup. Chasing a "bad roll" of film before methodically checking the machine is often a detour that prevents you from finding the real root cause.
Most common flexible film slitting problems like wrinkles, poor edges, or unstable rolls can be solved by methodically checking three main areas: web tension control, slitting station setup, and web path alignment. Before assuming a film batch is faulty, start by diagnosing these machine and operational factors, as they are the most frequent root causes of defects.
By learning to read the symptoms, you can move from guessing to diagnosing, saving time, reducing waste, and producing consistently high-quality rolls.
What Should I Check First: The Machine Setup or the Film Material?
When a defect appears, the most productive first step is to treat the machine as the primary variable. Think of it this way: every master roll, even from the same supplier, can have slight variations in thickness or winding profile. A well-adjusted slitting machine should be able to handle these minor differences.
The better habit is to treat each new roll as a new job setup. Instead of immediately suspecting the material, ask: "Are my machine settings optimized for this specific roll?" This shift in mindset is the fastest path to a stable process.
Blaming the film first is a common misjudgment that keeps the real problem hidden. If the issue is incorrect tension or a worn blade, that problem will return again and again until the machine setup is corrected.
How Do I Diagnose and Fix Wrinkles in the Film?
Wrinkles are not random; their direction and location are clues that point directly to the root cause. Don’t just see "wrinkles"- learn to see the pattern.
- Longitudinal Wrinkles: Wrinkles that run in the same direction as the film web are almost always a sign of improper tension. If the web is fluttering and looks loose before the slitting station, your unwind tension is likely too low. Conversely, if you are slitting a stretchy film like PE and see it "neck down" (get narrower) in the web path, your tension is likely too high and causing distortion.
- Diagonal Wrinkles: Wrinkles that appear at an angle across the web are a classic symptom of misalignment. If the idler rollers that guide the film are not perfectly parallel to each other, one part of the web travels a longer path than the other, causing a diagonal buckle. One useful check is to use a straightedge to check key rollers for parallelism.
- Random Wrinkles or Clinging: If the film seems to have a life of its own, clinging to rollers and creating inconsistent wrinkles, the invisible cause is often static electricity. Check that your static elimination bars are clean, powered on, and positioned correctly (usually just after the slitting station).
Why Are My Slit Edges Dusty, Jagged, or Burnt?
The quality of the slit edge is an important factor, especially if the finished rolls are for printing or automated packaging lines. "Bad edges" is too vague for a diagnosis. Look closer at the defect.
- Dusty Edges or "Angel Hair": This fine, fibrous dust, especially common when slitting PET, is a tell-tale sign of worn or dull razor blades. Razor slitting is fast and effective for thin films, but the blades wear out. Inspect them carefully; if they are nicked or dull, replace them.
- Jagged or Torn Edges: With a shear slitting system (top and bottom circular knives), jagged edges often point to an incorrect setup. The overlap between the top and bottom knives, and the side pressure, must be set precisely for the film’s thickness. Too much or too little overlap can tear or chew the material instead of delivering a clean cut.
- Burnt or Melted Edges: This indicates excessive friction and heat at the slitting point. This can be caused by dull shear knives, excessive side pressure, or running the machine too fast for the material and blade setup.
Troubleshooting Unstable Rolls: Why Are They Telescoping or Too Loose?

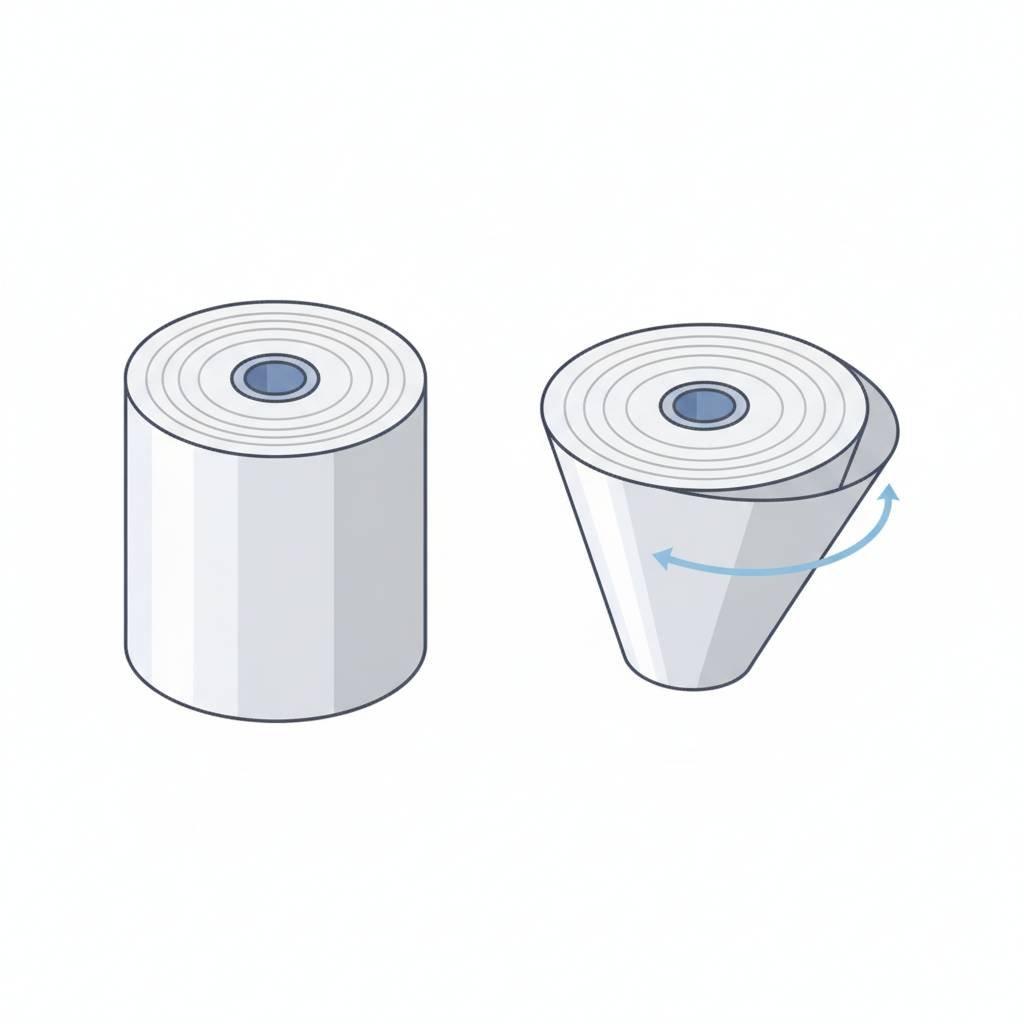

You can produce a perfectly slit web, but if it’s wound into an unstable roll, the product is still defective. The most common roll defect is "telescoping" or "dishing," where the layers shift sideways, creating an uneven, cone-like shape.
This is almost always a rewind tension problem. As a roll builds in diameter, the same amount of winding force creates more and more pressure on the inner layers. If tension is kept constant, the core can be crushed ("starring") while the outer layers are too loose. This leads to a structurally unstable roll that telescopes as soon as it’s handled.
The solution is taper tension control. A machine with this function is programmed to automatically and gradually reduce the winding tension as the roll diameter increases. This helps achieve uniform roll density from the core to the outside. If your rolls are consistently telescoping, the first thing to investigate is whether your machine has, and is correctly using, taper tension. A machine without this capability will often struggle to produce large, stable rolls of film.
A Practical Diagnostic Chart for Common Slitting Defects
Use this chart to move from guesswork to a logical diagnostic process. Find your symptom in the first column and use the next columns to guide your first check.
| Common Defect (Symptom) | Likely Causes to Investigate | What the Operator Should Check First |
|---|---|---|
| Longitudinal Wrinkles (in web direction) | Unwind tension is too low or unstable. | Observe the web between the unwind and slitting station. Is it fluttering? Confirm the unwind brake/motor setting. |
| Diagonal Wrinkles | Rollers in the web path are misaligned. | Use a straightedge to check if key idler rollers are parallel to the slitting shaft. Check if the web is drifting to one side. |
| Edge Dust ("Angel Hair") | Razor blades are worn, nicked, or dull. | Carefully inspect blade edges for damage. Check how many hours the blades have been in use. |
| Jagged or Burnt Edges | Incorrect shear knife overlap or side pressure. | Confirm the top and bottom knife overlap is set according to the manual for the film’s thickness. Check for excessive friction or heat. |
| Telescoping Rolls ("Dishing") | Rewind tension is constant and not reducing as the roll diameter increases. | Check if the machine’s "taper tension" function is active and programmed correctly. Feel the roll-is it much harder in the center than the outside? |
| Web Clinging to Rollers | Static electricity is not being managed. | Check if static elimination bars are installed, clean, correctly positioned (usually after slitting), and powered on. |
How to Get Effective Help from Your Machine Supplier
If you’ve worked through these checks and still face issues, it may be a machine capability limitation or a more complex problem. When you contact a machine supplier for help, preparing the right information helps you get a fast, accurate solution instead of more questions.
Before sending your inquiry, collect the following details:
- Film Material: Type (e.g., PET, BOPP, PE) and thickness in microns.
- Defect Evidence: Clear photos or a short video showing the problem as it happens on the machine. Include a photo of the defective finished roll.
- Machine Settings: Your current running speed, tension values (if displayed), and the slitting method used (razor or shear).
- Roll Dimensions: The parent roll width/diameter and the finished slit width/diameter.
Sending this information with your request allows our engineers to understand the problem clearly and provide targeted, effective advice. It turns a vague call for help into a productive troubleshooting session.
