Definition and Scope of Web Tension

Core Meaning of Web Tension

Web tension refers to the longitudinal force applied to a continuous, flexible material (known as a web) as it travels through machinery, helping ensure the material remains properly aligned, stable, and suitable for processing. This force is essential for maintaining the integrity and quality of materials such as paper, film, foil, textiles, or plastic films during manufacturing operations.

Where Web Tension Applies in Industry

In industries where materials are unwound, processed, and rewound as continuous sheets or rolls, web tension is a critical factor. Common applications include printing, coating, laminating, converting, and slitting operations where maintaining controlled tension helps prevent defects and supports consistent production speeds. The concept is integral wherever flexible materials must be handled in roll form.

Underlying Principles of Web Tension

Longitudinal Force and Material Movement

At its core, web tension represents the pulling force exerted along the length of the web to keep it taut and prevent slack or excessive slackening. This force balances the mechanical actions of unwinding, guiding, processing, and rewinding, enabling smooth material flow and preventing undesirable elongation or distortion.

Relationship of Tension to System Components

Several interacting machine components such as rollers, brakes, and drives influence the tension in a web. Each component contributes resistive or propulsive forces, and the equilibrium of these forces defines the uniformity and magnitude of tension along the web path. Proper tension distribution prevents slipping, misalignment, and damage to the web or the equipment.

Variations and Types of Web Tension in Processes

Zone-Based Tension Distinctions

Along the material path, web tension can vary in different zones, typically segmented into unwinding, processing, and rewinding sections. Each zone may require separate tension levels to accommodate changing material properties or process conditions. Managing these distinctions is important for achieving process goals without causing defects or mechanical issues.

Tension Differences Across Applications

Based on material type, thickness, and process goals, the required tension levels and control approaches differ. For example, delicate films might require low and consistent tension to avoid tearing, while heavier materials can tolerate higher forces. Variations also arise depending on whether the process involves printing, coating, or cutting, each influencing the way tension is applied and regulated.

Factors Affecting Web Tension and Typical Issues

Material and System Influences

Material elasticity, width, thickness, and surface texture, along with machine speed and component interactions, are several factors that influence web tension. Variations in these properties can cause uneven tension distribution, which requires consideration during setup and operation to avoid material stress or slack regions.

Frequent Material Defects Related to Tension

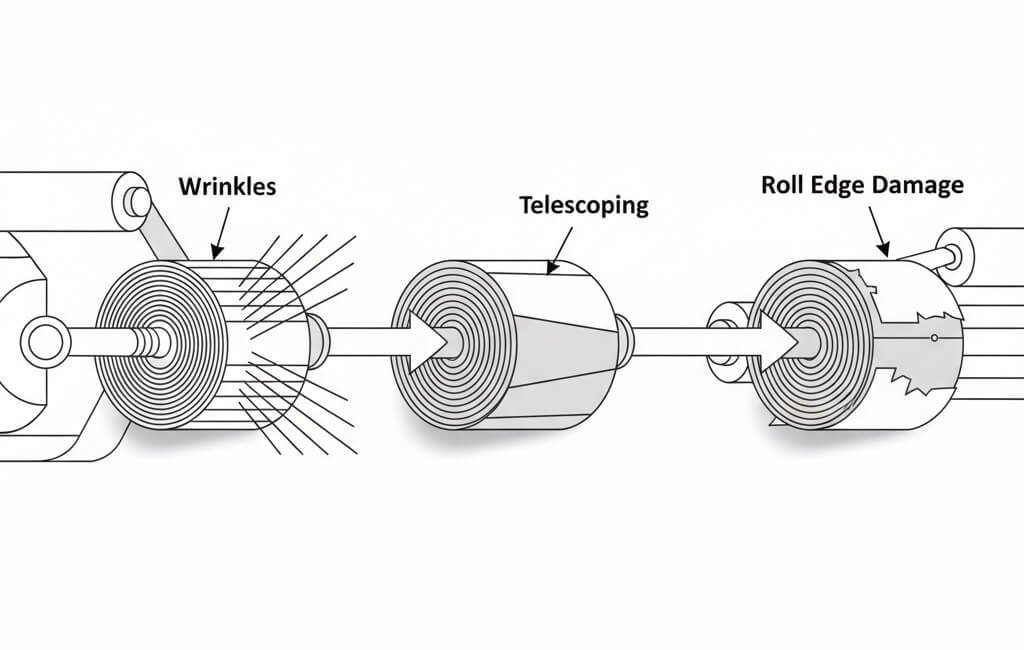

Improper tension leads to common issues including wrinkles, where low or uneven tension causes folding or creasing, and roll defects such as telescoping or edge damage, which often arise from excessive or uneven tension. These defects can degrade product quality and disrupt downstream processing steps.

Reference Principles and Further Reading

Key Non-Numeric Principles in Web Tension

In web tension, two foundational concepts are the taper tension effect, which acknowledges that tension can vary both across the width and along the length of the web, and the relationship between applied torque and achieved tension, emphasizing how mechanical forces translate into tension within the material.

Glossary of Terms

• Web: A continuous, flexible sheet of material processed through industrial machinery.
• Tension: The longitudinal force applied to a web.
